1600T Movable Scaffolding System
October 25, 2021
- Capacity: 1600T
- Bridge pier spacing: 40~50m
- Adaptation curve radius: ≥800m
- Total power: 80KW
- Design and construction period: 15 days/span
- Client: China Railway Fourth Bureau CTCE

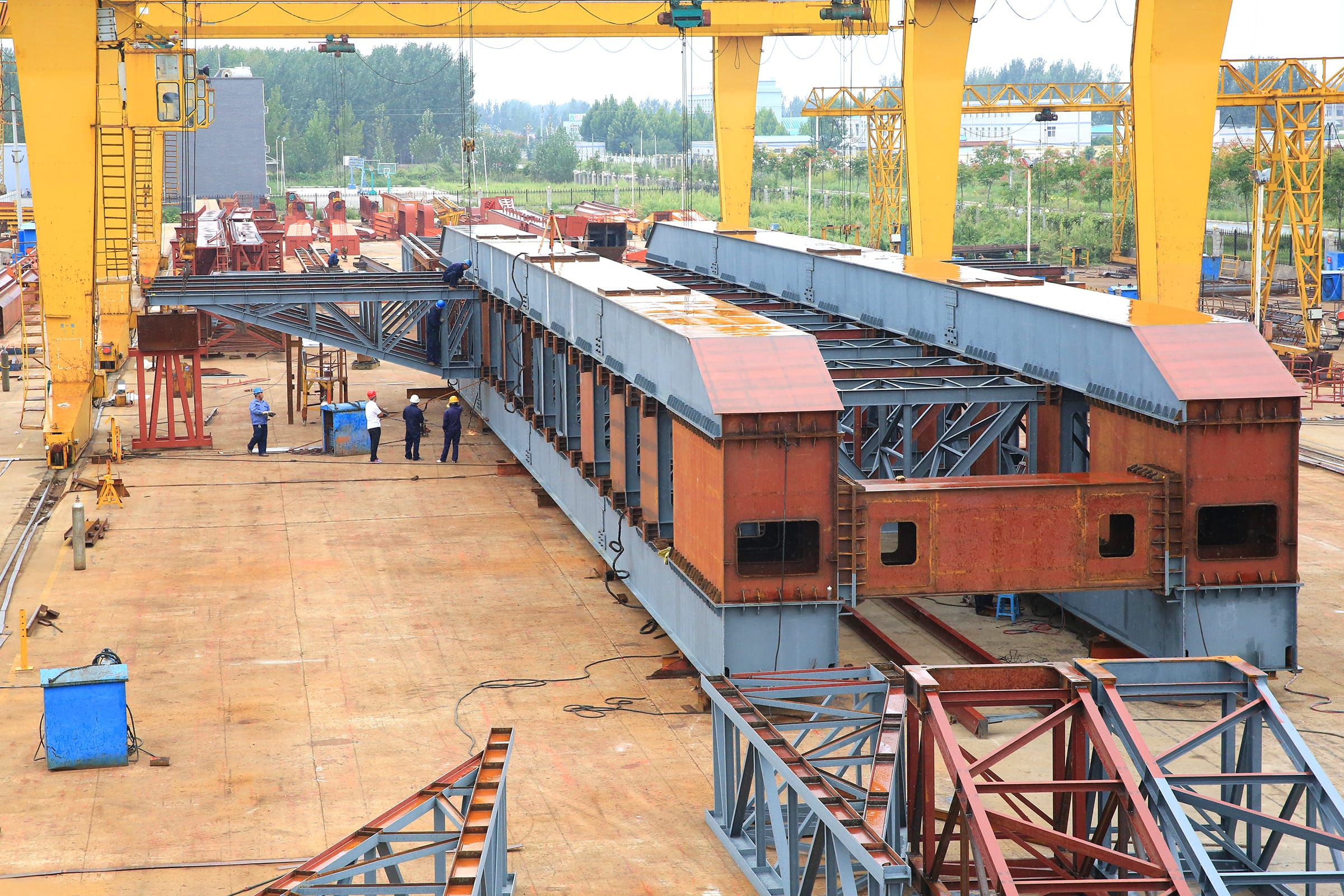

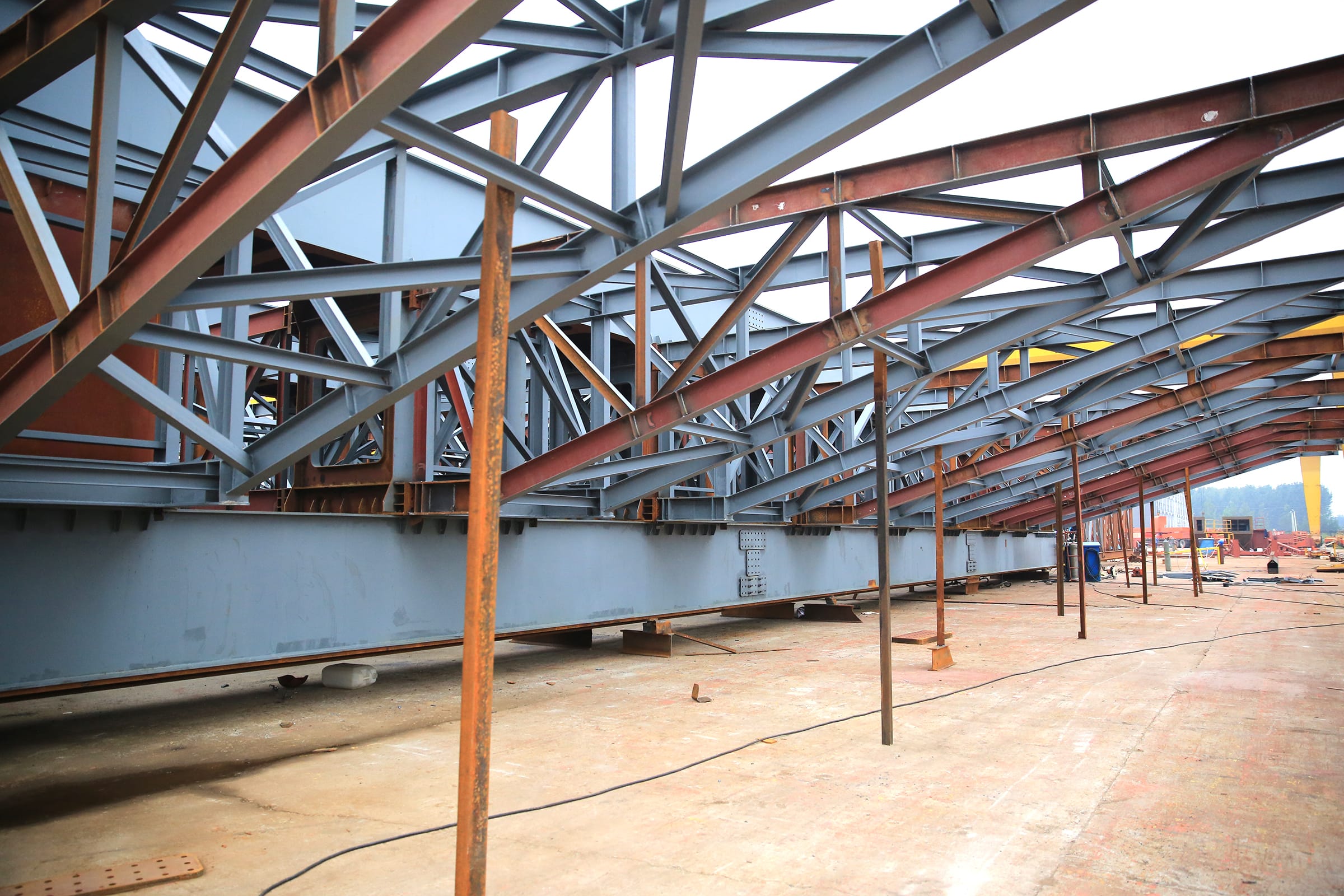

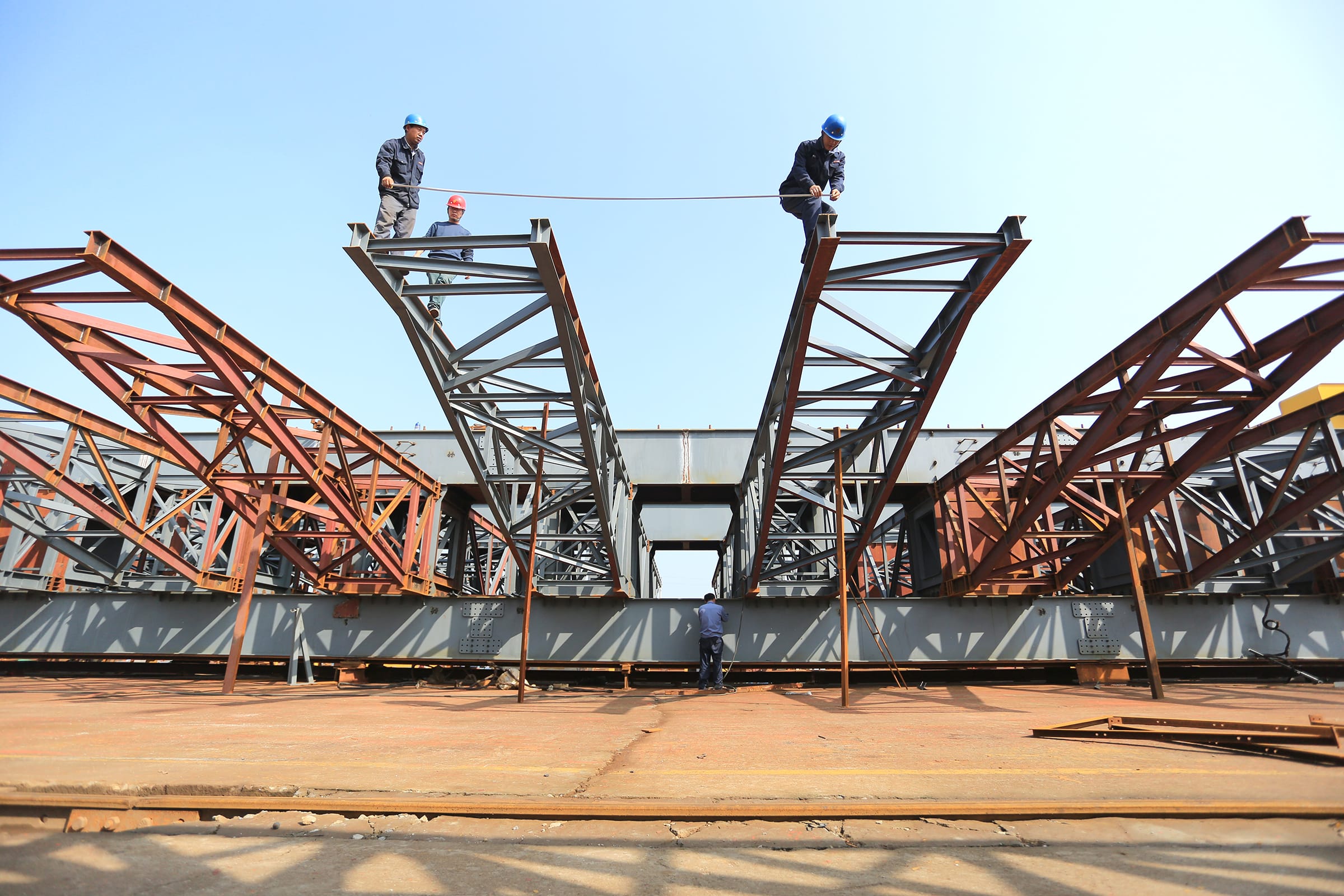

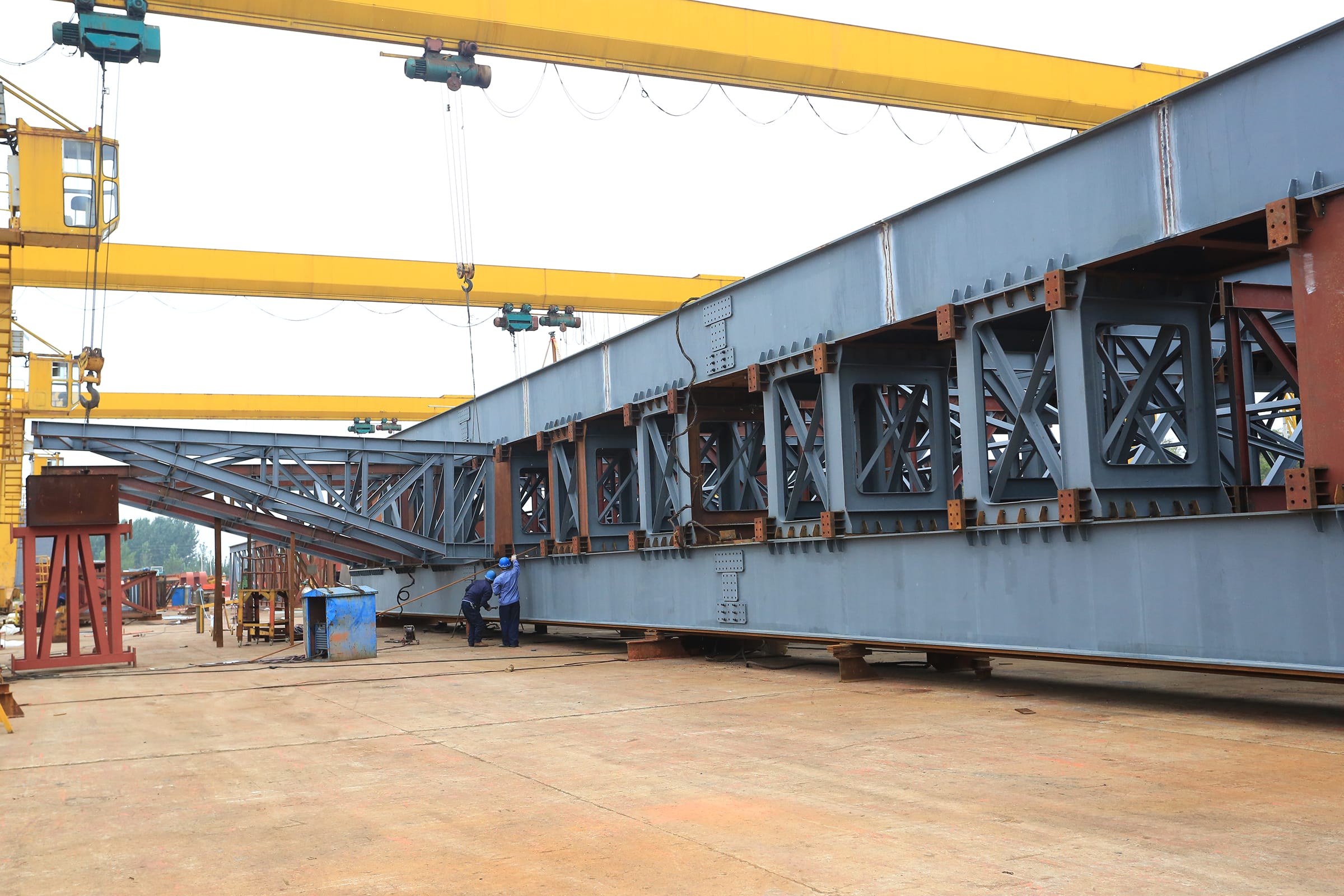

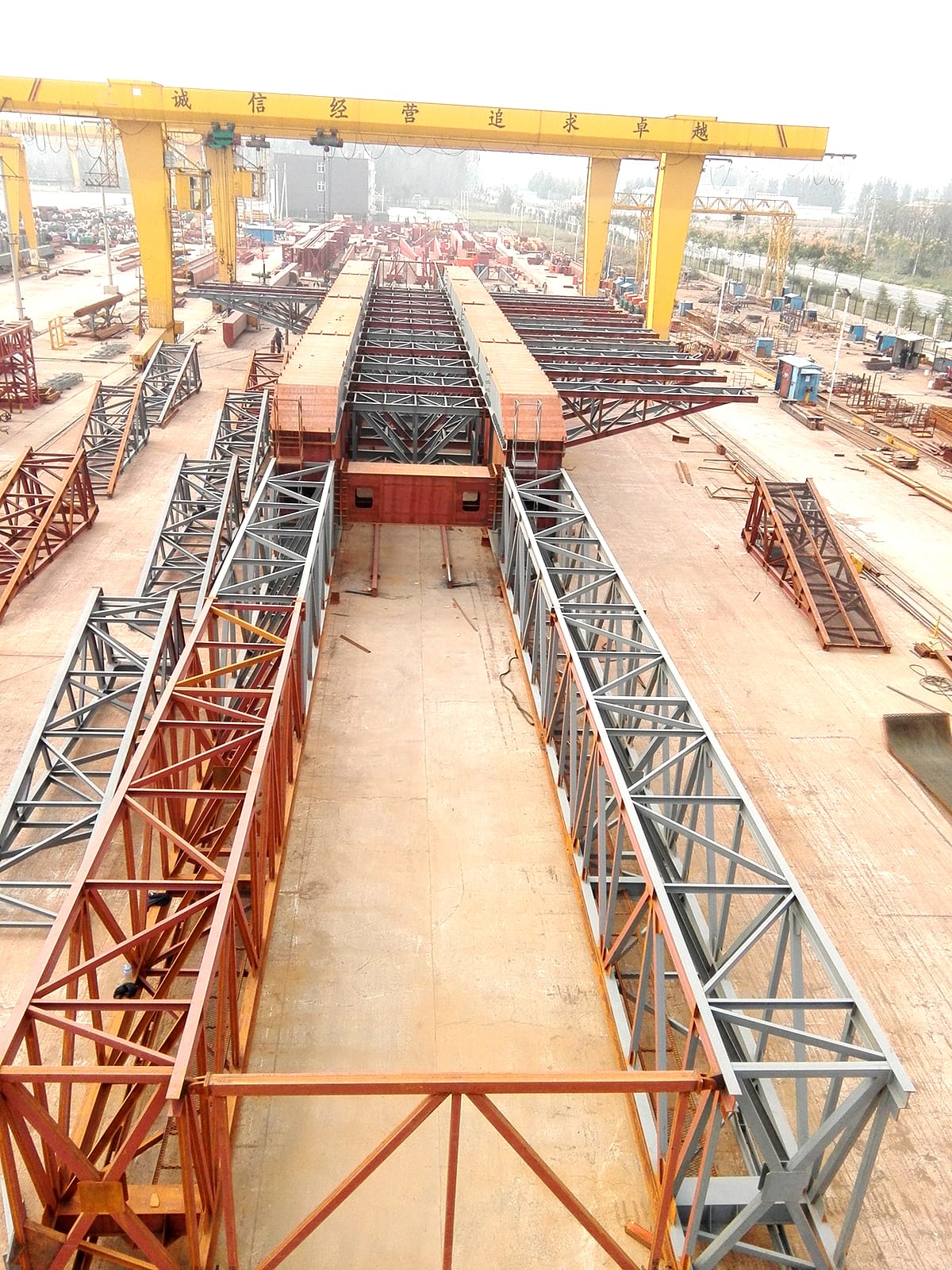

Henan dafang 1600T Movable Scaffolding System adopts upper bearing design, precast beams are cast-in-situ span by span. The bridge pier is supported on the surface, and two longitudinal beams support the formwork system. Vertical jacking and falling use a separate jack to achieve longitudinal movement, and the opening and closing of the mold base is also hydraulically controlled.
